Level 2 Electric Vehicle (EV) Charger(WIFI APP/Plug-play), 32A, 25ft Cable ETL Certified, 220V-240V NEMA 14-50P Plug EVSE w/ J1772 Connector, Portable EV Car Charging Stations for Home Level 2
$ 270
Brand: AIMILER
Connectivity Technology: Bluetooth, 2.4G WIFI
Connector Type: Nema 14-50 Plug
Compatible Devices: j1772 cars sold on North America
Compatible Phone Models: all smartphones
Included Components: Aimiler Level 2 EV Charger 25Ft Charging cable with Nema 14-50 Plug 1 Portable Hand Bag, 1 Fixing Cover 1 Wall-mounted EV Charger Nozzle and Cable Holder 3-year Quality Warranty
Cable Length: 25 Feet
Special Feature: Lightweight Design, Short Circuit Protection, Fast Charging
Color: Black, for j1772 cars
Input Voltage: 240 Volts
About this item
- [Equipped with Nema 14-50 plug, Compatible with 110-120V Nema 5-15p to 14-50r EV Adapter(Not packaged) or the other EV Adapter Cable]: Suggest install the 240V Nema 14-50 plug-in socket. [Kindly Note When Using the 5-15P Adapter]: 1. The RV Adapter cable doesn’t work for EV chargers, please order the correct EV adapter cable. 2. It will become slow level 1 ev charging and some cars may drop to 12A, the max charging rate is 1.32-1.8kW(110V*12A-120V*15A).

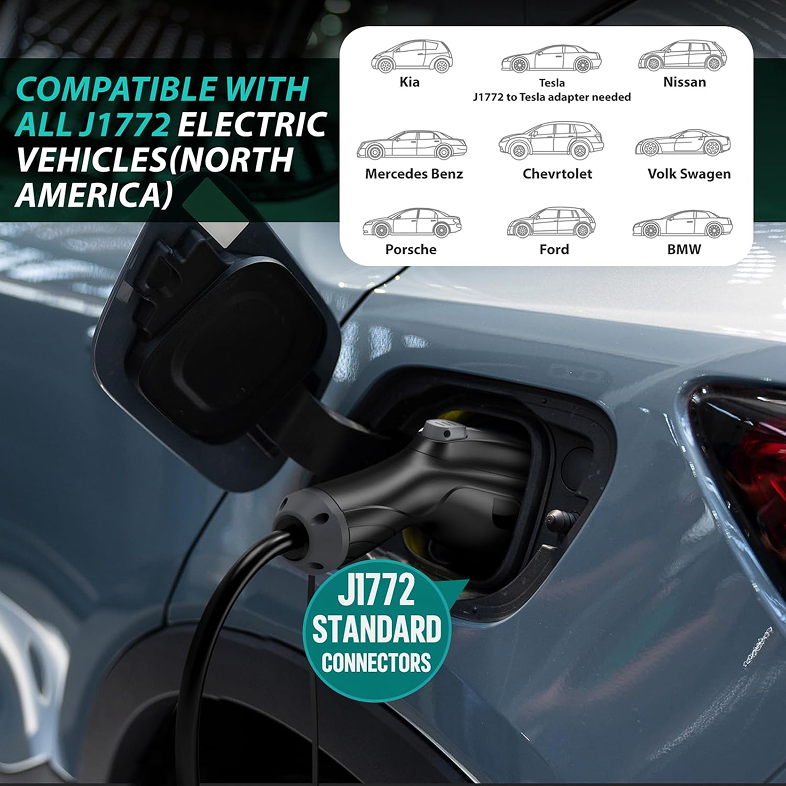

- [Features a J1772 Connector for All North America Non-Tesla EVs/PHEVs. For Tesla EVs, This will Require an j1772 to Tesla Adapter]: Compatible with Tesla cars (Adapter not included), Ford, GM, Nissan, Audi, Kia, Honda, BMW, Kia, Hyundai, Gmc, Chevy, etc. [6X Faster Charging with ETL, FCC Listed, Meets the Safety Criteria Defined by: SAE J1772, UL2231-1/-2, UL 991, UL 2231, UL 2251, UL1998 and UL 2594]: Say goodbye to slow level 1 ev charger, enjoy safe charging and 6X faster charging.
- [Up to 7.68kWh High Speed Charging, Adjustable Amperage from 16A to 32A & Requires a 20A to 40A circuit]: Maximum current output of 32 Amps for 40A circuit breaker, 24 Amps for 30A circuit breaker, or 16 Amps for 20A circuit breaker (Please pull out the charging gun, long press “A” button to change the current). You can also adjust the current/amperage by APP before the charging.

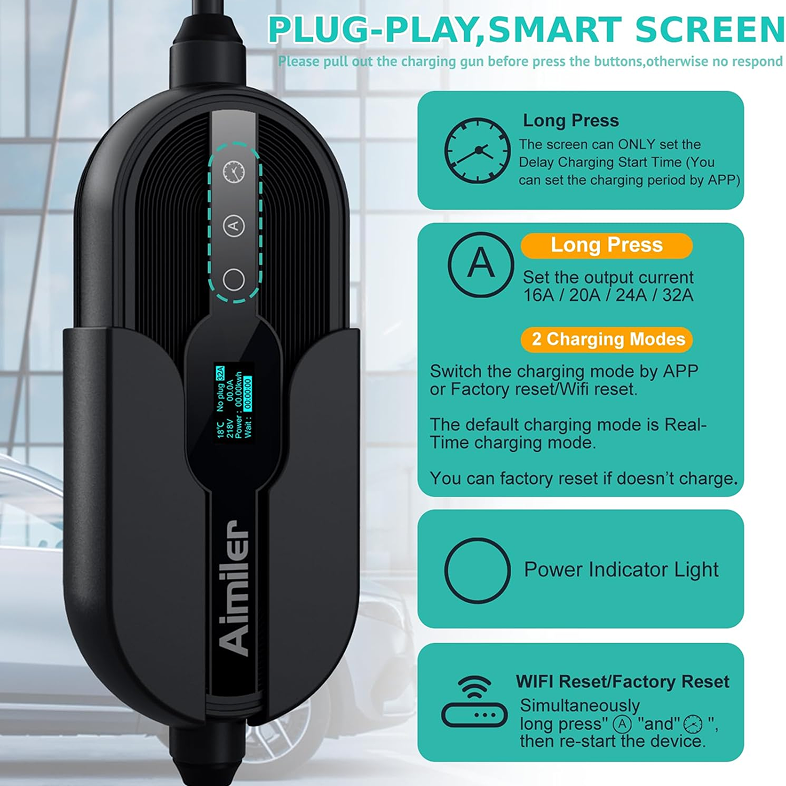

- [2 Operating Modes: Plug-charge(The Default Setting) or APP Start Mode & Smart Touch Screen]: The LED Screen Clearly show the Amperage, charging speed, input voltage, delay time, etc. For the touch buttons: 1. Pull out the charging gun before press the button, otherwise no respond; 2. Long press “Ⓐ” or “Time” button to adjust the amperage from 16A to 32A freely or Set the charging start time; 3. You can do “factory reset” if doesn’t charging.
- [Smart WIFI APP, You can Set the Charging Period]: Check the charging cost, history, fully-charged notification, track the charging status, during off-peak period, etc. [Wi-Fi Reset/Factory Reset Function, Add New Device Quickly]: If you can’t find your device or you have replaced a new phone, just pull out the charging gun, simultaneously long press the Ⓐ button and time adjustment button on the product screen until it shows “Factory Reset”, then re-start your device.

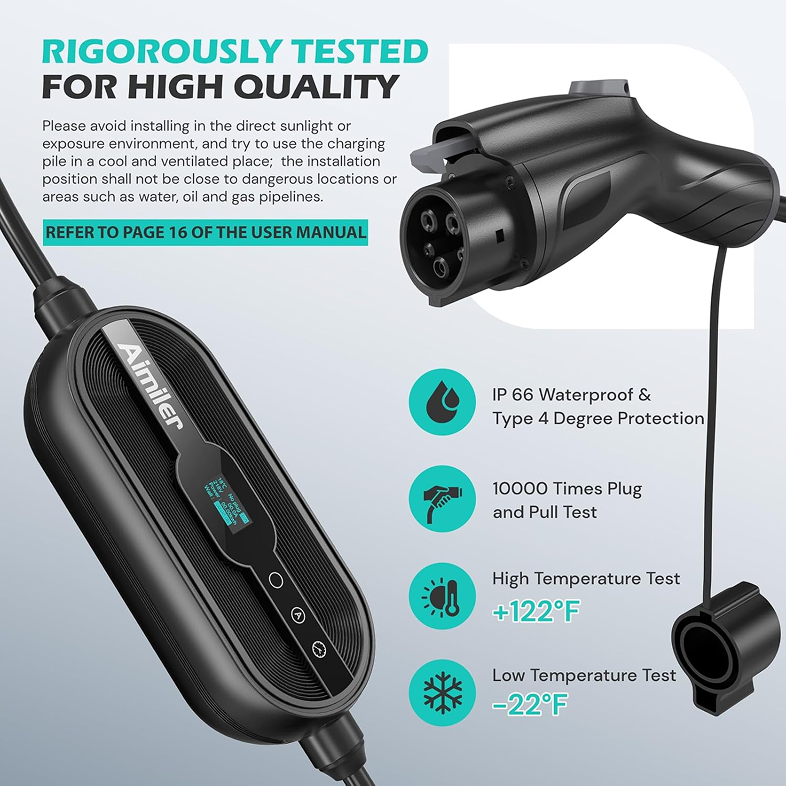

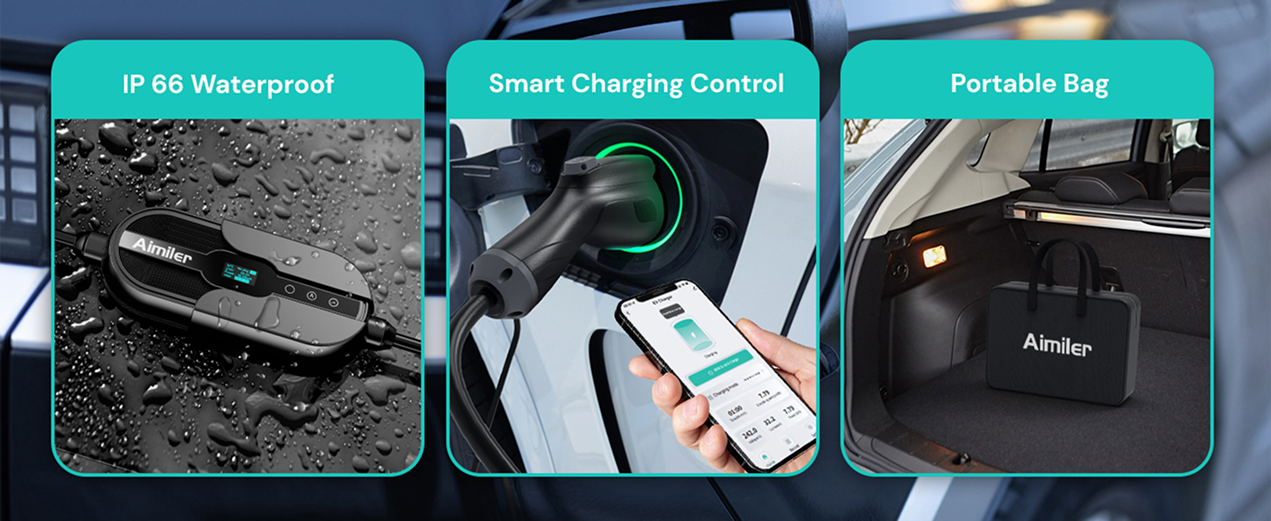

- [Nema Type 4 Protection Degree & 25ft Long Bold Cable]: Approved by NEMA Type 4, the Aimiler ev charger has a certain extent of IP66 waterproof. (We don’t suggest install in the direct sunlight or exposure rainy day.) Equipped with 25 feet military grade charging cable, the drop-resistant plug endures over 10,000 charges, super durable.
- [Question & Answer: Why can’t find the device on app? or Can’t find the device after changing phones]: Solutions: 1. Confirm your phone to connect with the 2.4Ghz wifi, not connect the wifi whose name has 5G suffix; 2. Turn on the wifi and bluetooth of the phone; 3. Factory Reset/Wifi reset: Pull out the charging gun, simultaneously long press the Ⓐ button and time button on the product screen until it shows “Factory Reset”. 4. Re-start and add your device again.
- [NO Need to Install the Additional GFCI Breaker]: Built-in CCID20 leakage detection and protection device, it is no need to install additional GFCI breaker for NEMA 14-50 receptacles.
From the brand
Product Description
How to connect with the App? (The Device name is “Aimiler-EV_Charger”)
1. Make sure your phone to connect the 2.4G wifi, not connect the wifi whose name has 5G suffix; Open the wifi and bluetooth of your smartphone.
2. You can search “Smart life” by Apple store(iPhone) or Google Store(Android phone) and download the APP, register by yourself directly, then click the “add” button and search your device. (Open the bluetooth permission for this app in your smartphone)
3. Wait 3-5 seconds, then you will find the device and click “Add” button, then insert your wifi password and add it.
1. Factory/Wifi reset: Pull out the charging gun, simultaneously long press the Ⓐ button and time button on the product screen until it shows “Factory Reset”, then re-start the machine.
2. Have a check with your smartphone’s wifi name, confirm whether your phone’s wifi has 5G suffix, if YES, please switch the 5G wifi to 2.4G wifi(Whose name doesn’t have 5G suffix.)
3. Open the APP, open the wifi and bluetooth of your smartphone, then add the device.
Warmly note: It is not allowed to adjust the current during the charging: Stop the charging, then you can adjust current.(Because adjust the current when charging may cause abnormalities, so we set this function can be done after turn off the charging.
By Screen Button(Delay Charging): For example you can set your screen’s delay time to 6 hours(06:00:00) at 5pm, then the ev charger will start charging on 11pm and it will automatically end until your car is fully of charging.
By APP(Period Charging): You can set the fixed charging period by APP.
Adjust the charging cureent by screen buttons: Long press “A” button or “Time” button for 3-5 seconds and enter into the setting interface, then adjust the current by your needs. (Pull out the charging gun before press the buttons, otherwise no respond)
