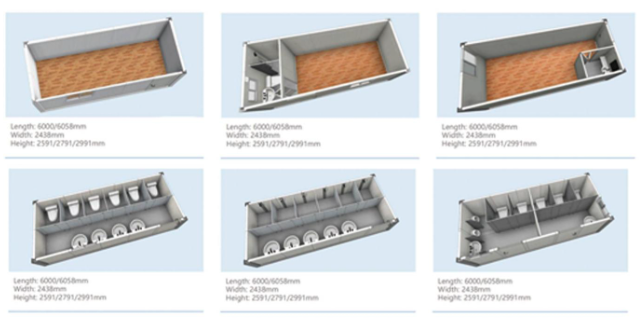

Floor Plan
Fast Build 20ft Modular Folding Container House
$ 719
✅ Easily transportable – the compact and foldable design of the container house makes it convenient to bring anywhere. All you need is a truck and you can set it up virtually anywhere you want.
✅ Quick and easy installation- no special tools or skilled labour needed. Only requires two people to set up the container house.
✅ Versatile – can be used for a myriad of purposes such as offices, accommodations, clinics, schools, and many more.
✅ Customisable – no matter what you’re using the container house for, you can explore various add-ons like bathrooms and extra rooms to achieve your ideal set-up.
Newest Desing Prefabricated Home 20FT Mobile Container
1.Materials:normally,steel beams, steel columns, purlin are all used Q235B cold bending galvanized light steel.
strength of steel:f=215N/m2
2.The structure can prevent the 8 magnitude earthquake.
3.The design of seismic grouping is the first group, the site characteristic cycle is considered 0.45s, the construction site
category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal
earthquake influence coefficient is 0.04, which is calculated by 5 years.
4. Structural safety level is grade 2. The coefficient of importance is 1.0.
Dimension
Drain system
Life span
Level of earthquake
Level of wind resistance
Fireproof rating
Frame thickness
Warranty
Appliance
5800mm*2500mm*2450m
Direct drainage
10 years
7
10
Class A
2.0mm
more than 3 years
Hotel,Dorm, storage

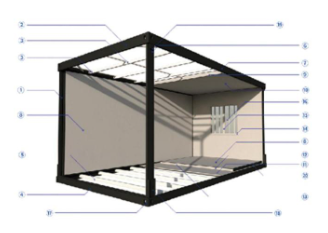

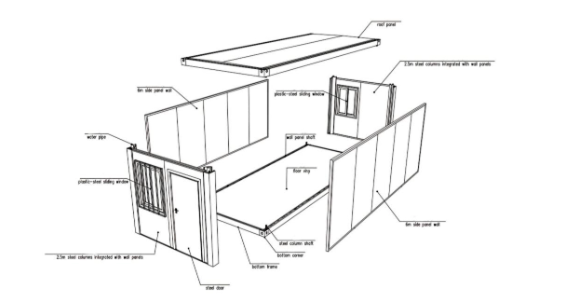

More Details
1 Column, 2.5mm roller beam
2.Roof main beam, 2.3mm roller beam
3. Roof secondary beam, 1.0mm galvanized
cold-rolled steel C-type
4.Ground main beam, 2.3mm roller beam.
5. Ground secondary beam, L5mm galvanized cold-rolled steel C-type
6. Bolt, Grade 8.8 high-strength bolt
7. Paint, electrostatic spraying plastic powder baking paint
8.Roof panel, t=0.45mm thick aluminum zinc coated color steel plate
9. Insulation cotton, 50mm glass wool felt
10. Suspended ceiling board, 0.3mm thick color steel plate suspended ceiling
11.Base plate, 18mm fireproof glass magnesium plate
12. Thickness, 50mm thick color steel rock wool sandwich board
13. Insulation, 0.3mm aluminum zinc coated color steel plate
14.Specification 950mm 1100mm
15.Frame material, plastic steel
16.Single layer glass
17.Bottom frame corner piece
18. Outer shaft
19. Top fastener
20. Hinge ear of side panel wall
Advantages
- 40% cheaper than flat pack container
- Fast Installation, 20 mins 1 house
- Inner drainage systerm
- Electricity pre-assembled
- Stack up to 3 floors
20 mins 1 house
Packing Solution
Opion 1
Container size:5900*2500*2470mm
Package method: Flat pack
Loading Qty: 10 units per 40ft HQ
Opion 2
Container size: 5900mm×2990mm×2760mm
Package method: Flat pack
Loading Qty: 8 units per 40ft OT

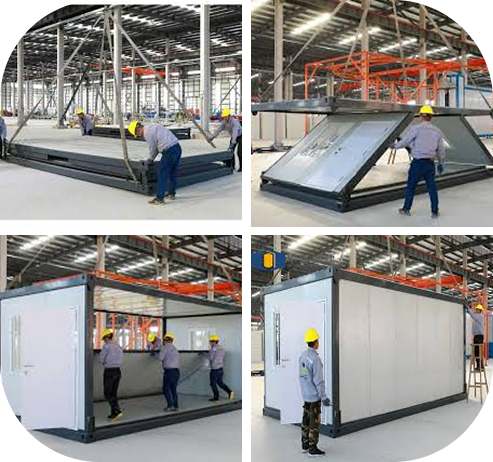

Installation
1. Use the crane to live its roof. Lift its roof slowly until the house is unfolded and stop the crane there.
2. Expand the front and back walls of the container. Push the front and back from inside, and make it stand in the correct place.
3. Use the bolts to fix the whole structure. There will be premade bolt holes on the columns, and we will provide enough bolts for you to fix them.
4. Install the door lock. To prevent the door lock from damaging the ceiling during the folding process, we will not install the door lock in advance. If you need to move the house to another place and need to fold it, please remember to take down the door lock in advance also.
Global Cases

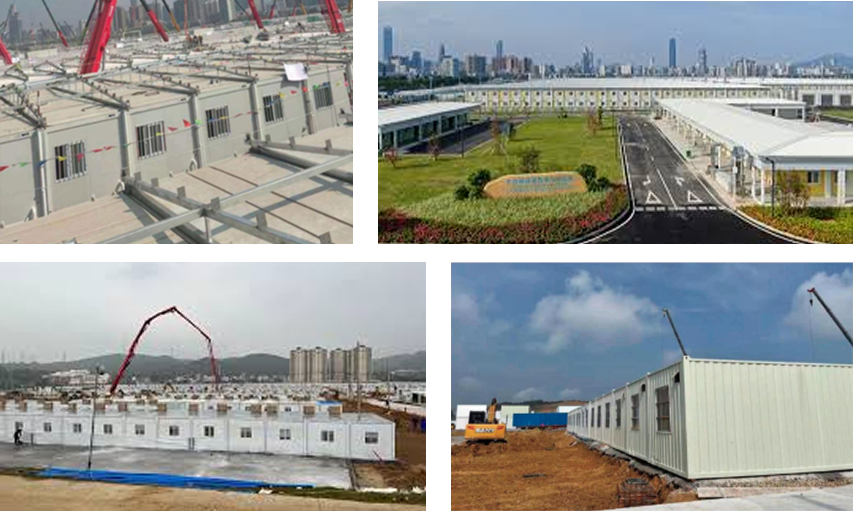

Hospital
In February 2020, in response to the novel coronavirus outbreak in Wuhan, the National Health Commission and relevant units established Wuhan Huoshenshan Hospital, Wuhan Leishenshan Hospital, and 13 makeshift hospitals in Wuhan. As of February 15, 2020, nine makeshift hospitals have opened in Wuhan. From February 5, when the makeshift hospital in Wuhan began to treat patients, to March 10, when the last makeshift hospital closed, a total of more than 12,000 patients were treated in 16 makeshift hospitals during this period, achieving “zero infection, zero death, and zero return.”

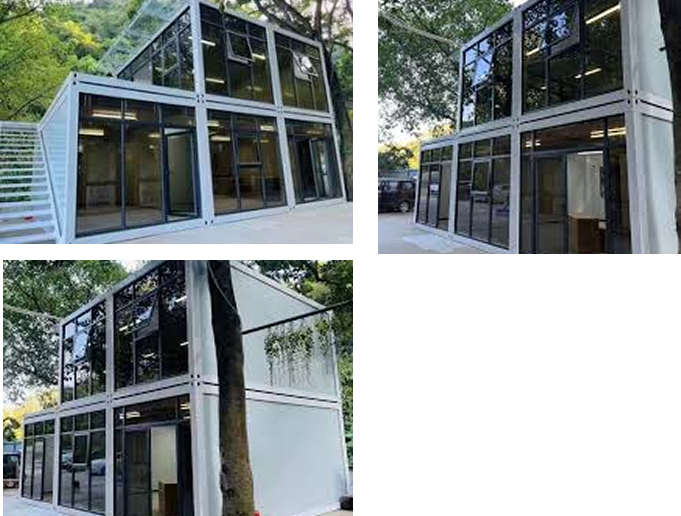

Special design for office
Location: Cuba
Product type: Flat pack container
Description: 6 units flat pack container with
glass for office

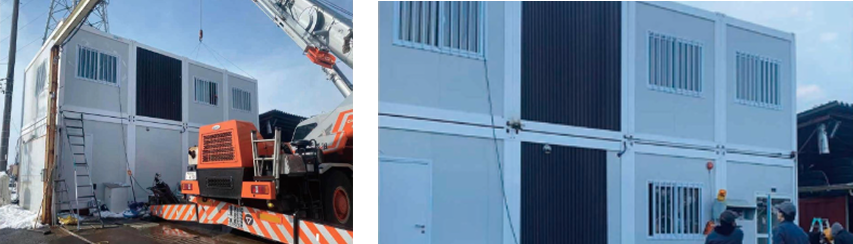

Japan office project
In a two-story building office, the materialof flat pack container has a thermal insulation effect at minus 20 degrees
Offer best services to customers with win-win cooperation
In a world where balancing modern living with environmental responsibility is paramount, LeafLofts, presents a win-win solution. Our container homes are a testament to the harmonious coexistence of comfortable living and eco-consciousness.
Design
Consultation
Work with our skilled architects and designers to craft a container house that reflects your individual style, weds, and budget
Material
Selection
Choose from an array of wen-friendly high-quality materials to ensure your container home is both durable and environmentally conscious
Project
Management
From concept to completion, our experienced project managers will guide you through the entire process, offering transparency and accountability at every step
Not just a container
We’re more than just a container house company; we’re your partner in turning your dream living space into a reality. Our commitment to excellence and a sustainable future sets us apart in the industry.
Cooperative Success
We recognize that the challenges and opportunilies in the construction industry are best addressed through cooperation and partnerships LeafLots Is a firm believer-wi collaboration
Sustainable Development
Sustainability is more than just a Bestemund for LeafLofts gunberg principle. We are committed to creating container houses that ombrace the sprit of sostarsabile development
Environmental Protection
Every aspect of our homes is meticulously designed with sustainability in mind. From eco-friendly materiah to efficient energy systems, our container houses offer the convenience you seek without compromising on environmental integrity
Budgeting Assistance
We’ll help you make informed decisions. ensuring your project atigns with your financial expectations while maintaining the highest standards of quality
Site Assessment
We conduct thorough site assessments to guarantee your container house seamlessly integrates with its surroundings, while meeting local regulations
Sustainability Solutions
As our name suggests, we’re committed to green building practices. Lat us assist you in making your container house an eco-friendly nasis
